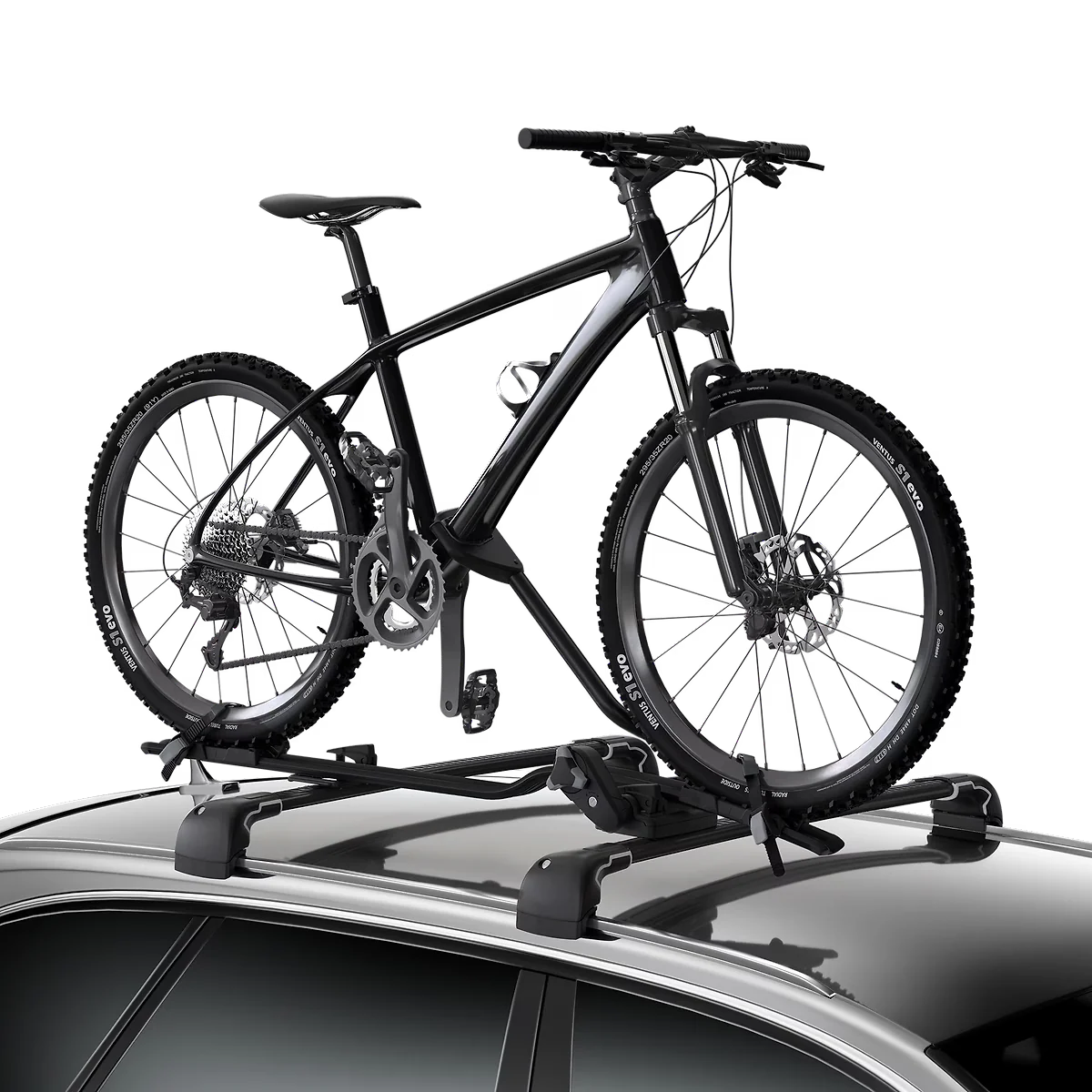

Roof Rack Accessory: Bike Carrier

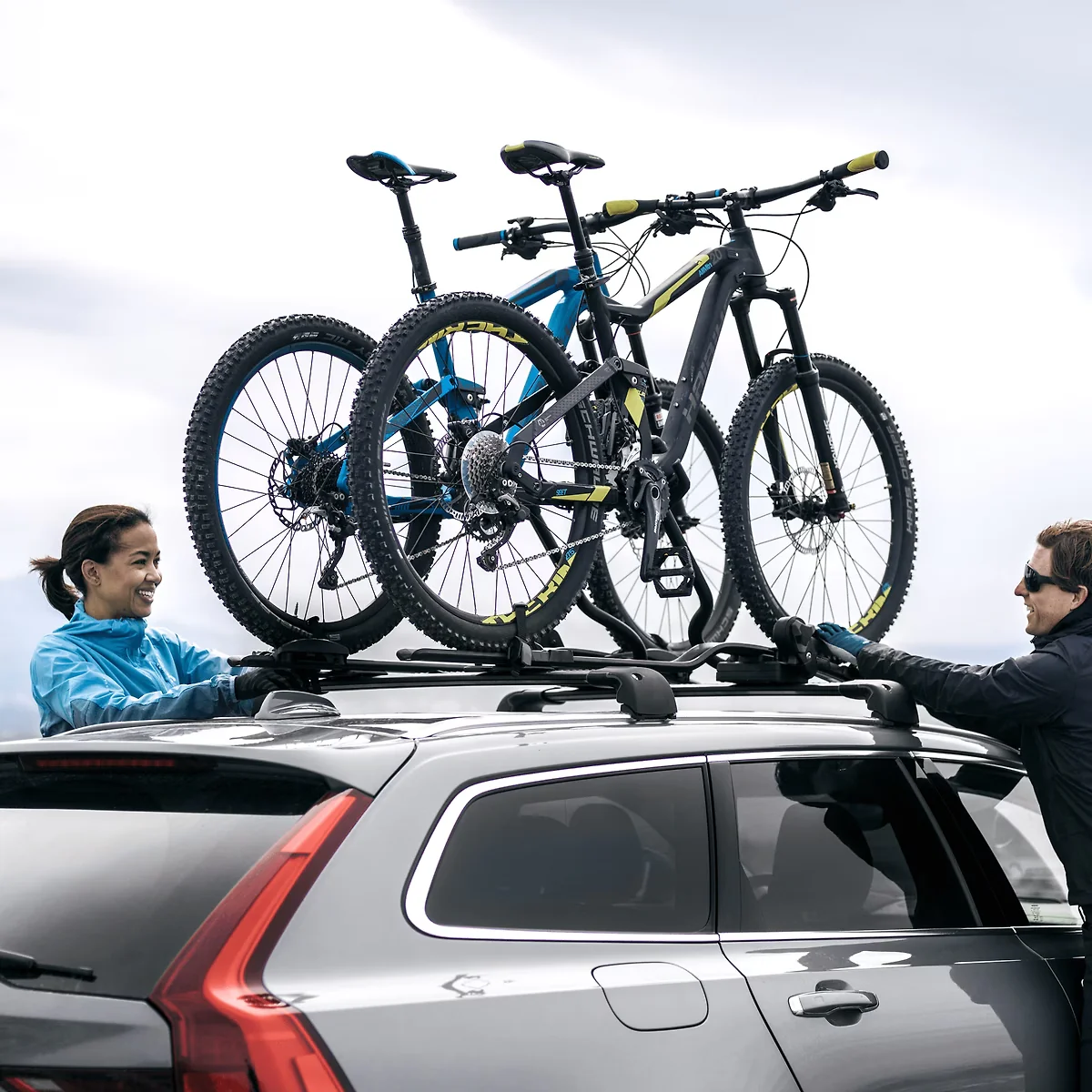

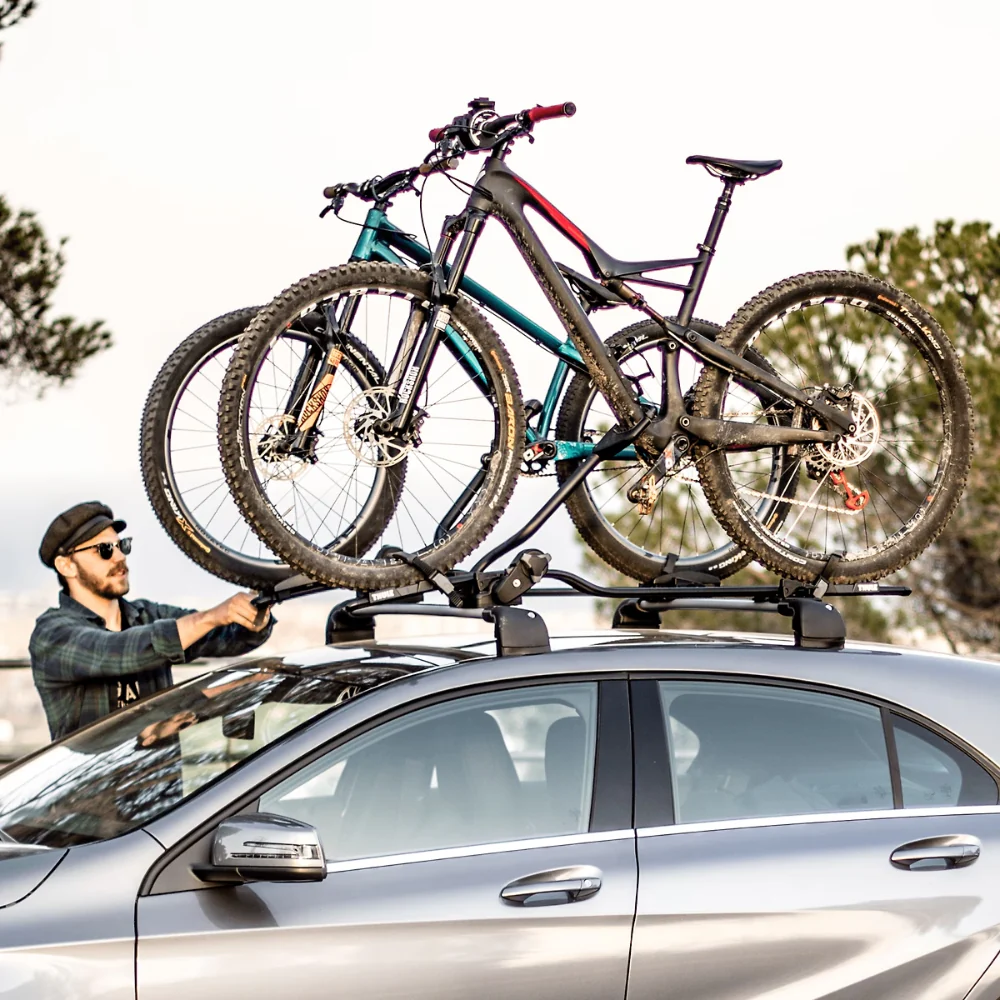

Travel the roads on four and two wheels. Bring your bicycles to your favourite destination with Mazda's secure roof rack bicycle carrier. Roof rack mounts keep your bicycle from obstructing the road visibility.

Also check out our other styles of bike carriers available including hitch mount and platform-style carriers.

Special Notes

• Roof Rack System required


Warnings & Limitations

• Never drive with any lock, knob or rack in an open or unlocked position
• Check tightness of all bolts and knobs periodically

• Not intended for off-road use

• Not intended for tandems or recumbents
• Do not install on a trailer or other towed vehicle

• Not for use for bikes with tire fenders
• Be aware of the width and height of your cargo since low clearance branches, bridges, and parking garages can affect the load
• Remove your rack and accessories when they are not in use and before entering automatic car washes
• For safety to your vehicle and rack system, obey all posted speed limits and traffic cautions
• Adapt your speed to the conditions of the road and the load being carried
• Drive slowly over speed bumps 8-16 km/h (5-10 mph) maximum

• Do not transport bicycles with attached baby seats, panniers, wheel covers or full bike covers

All features

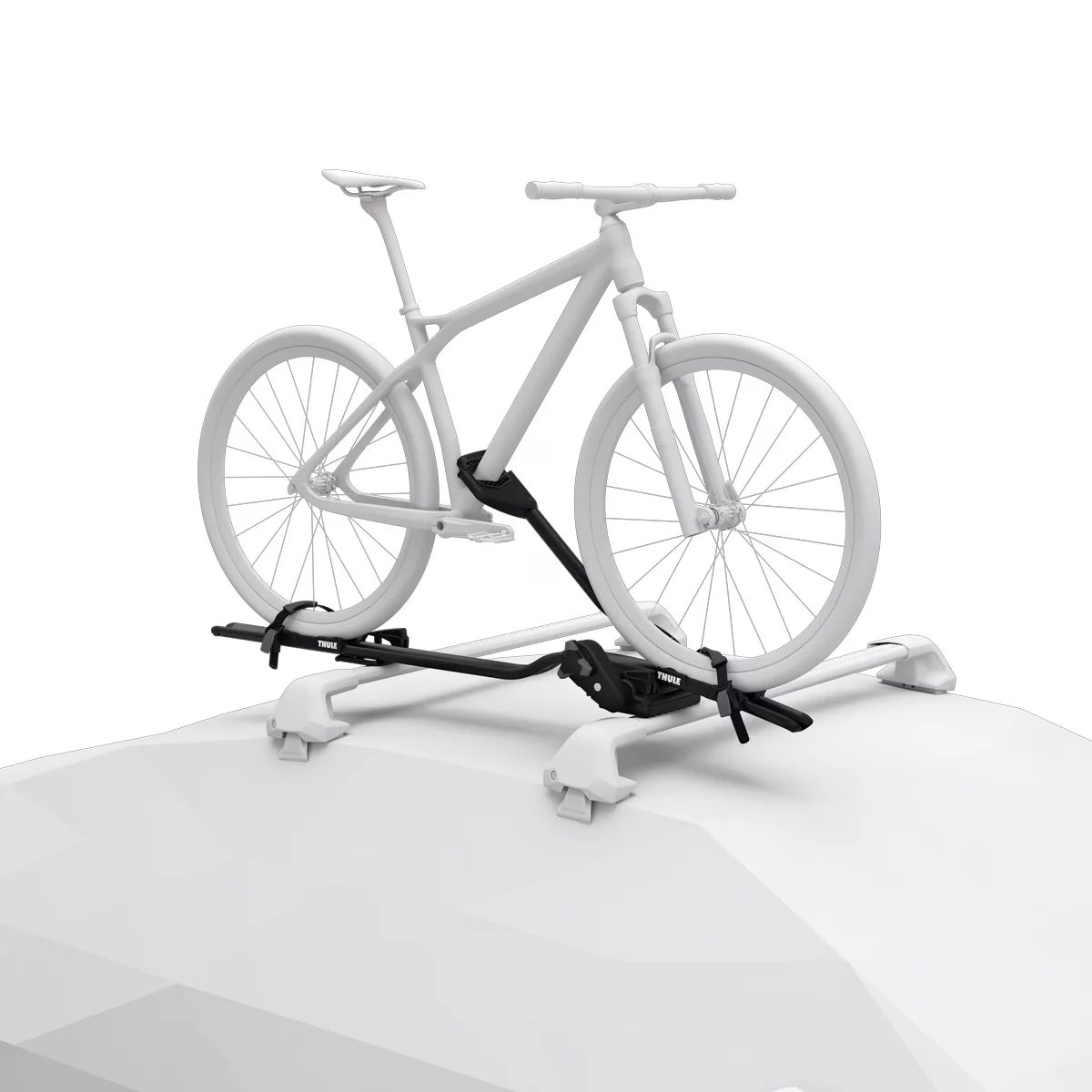

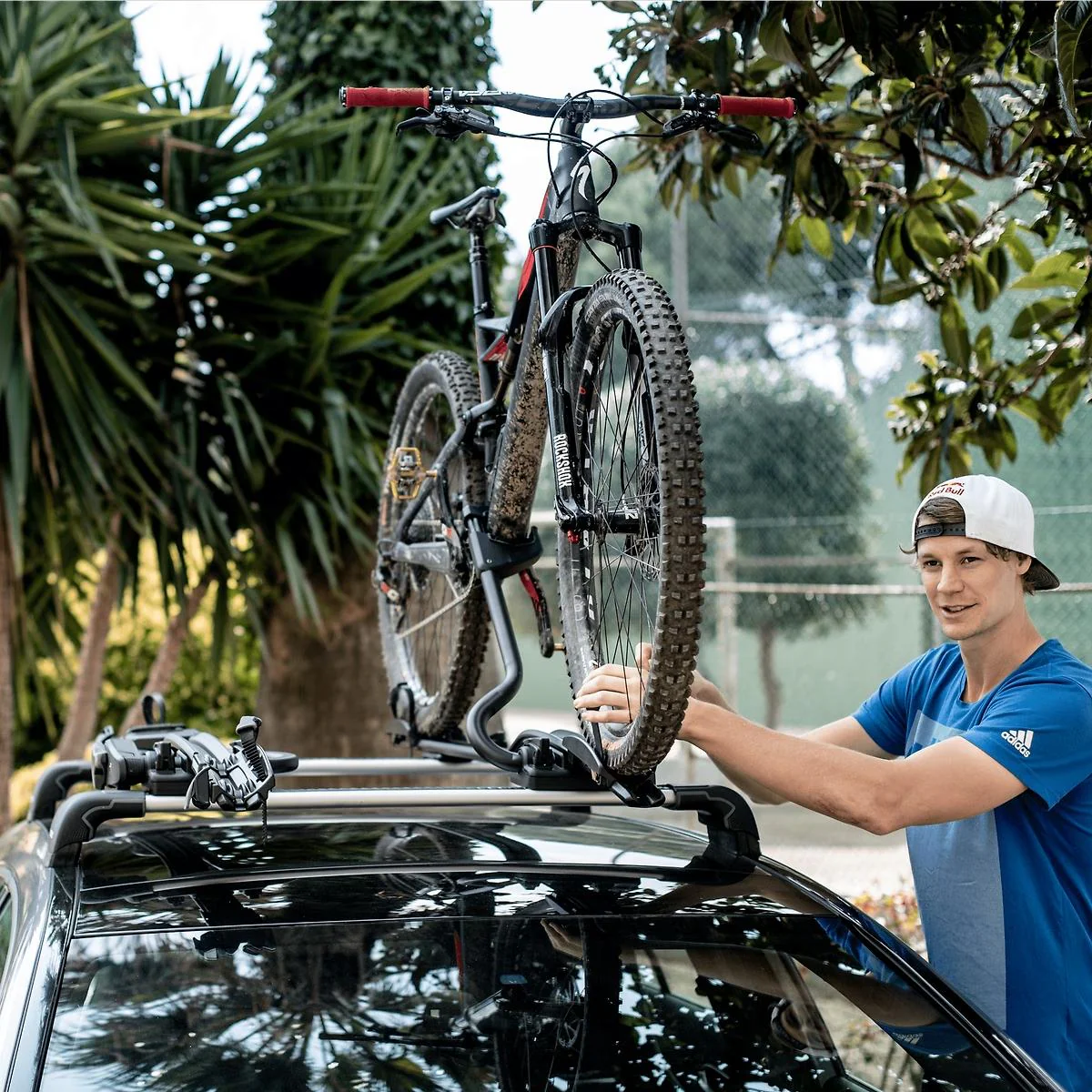

	Automatically positions your bike when you secure it, thanks to the uniquely designed frame holder and wheel tray

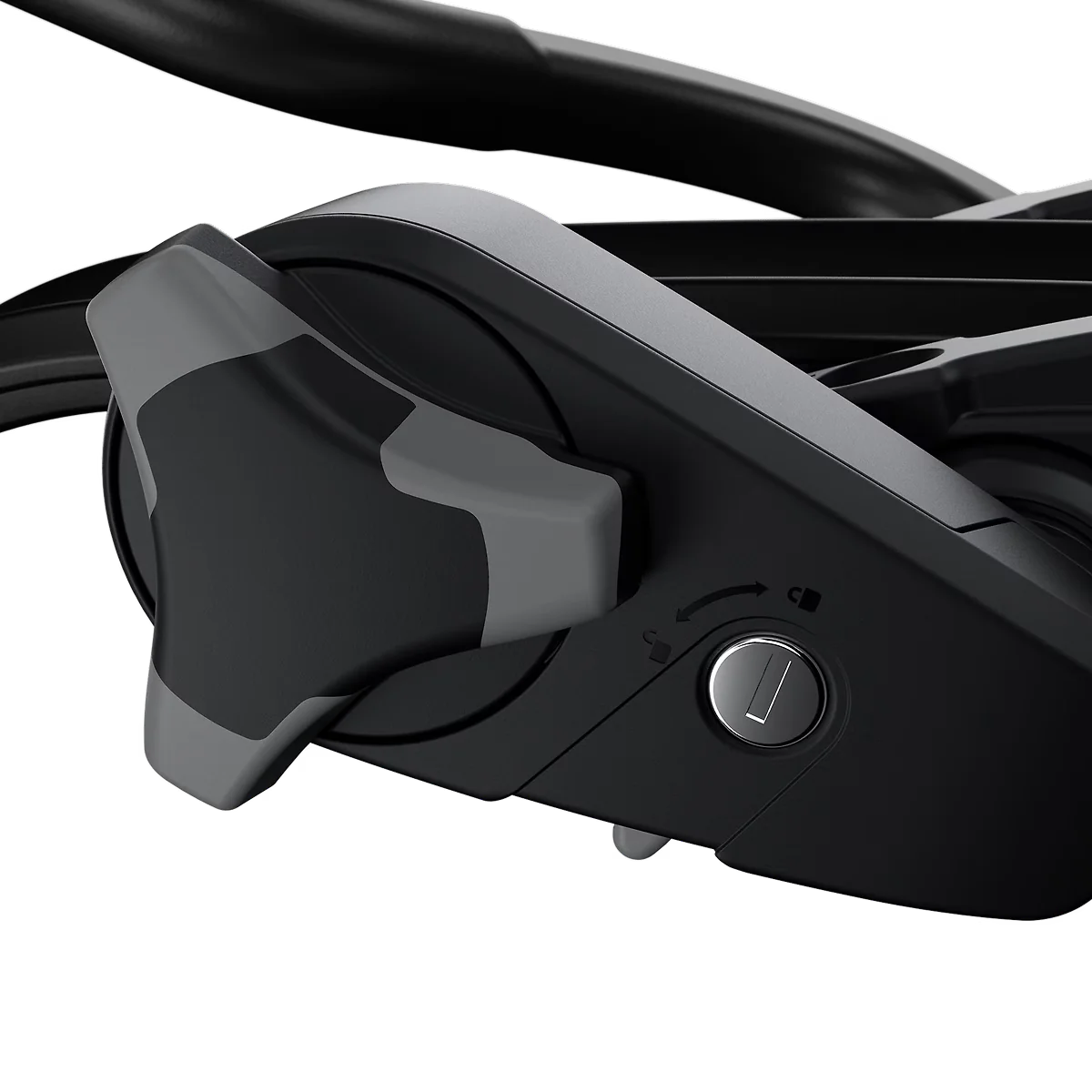

	Quick and easy bike securing — the torque limiter dial controls the force going into the bike frame with a clear sign of correct mounting

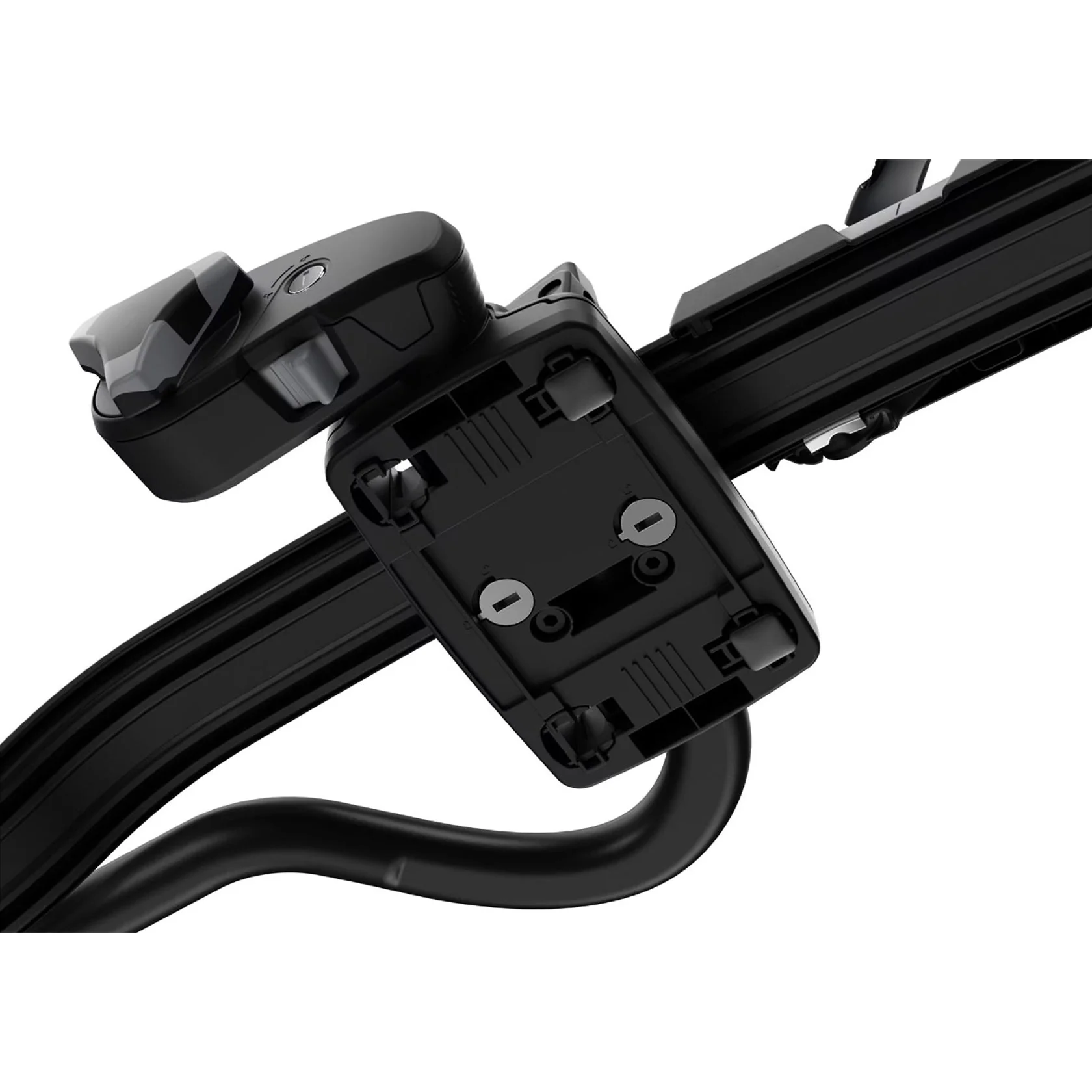

	Improved mounting hardware fits most factory cross bar profiles

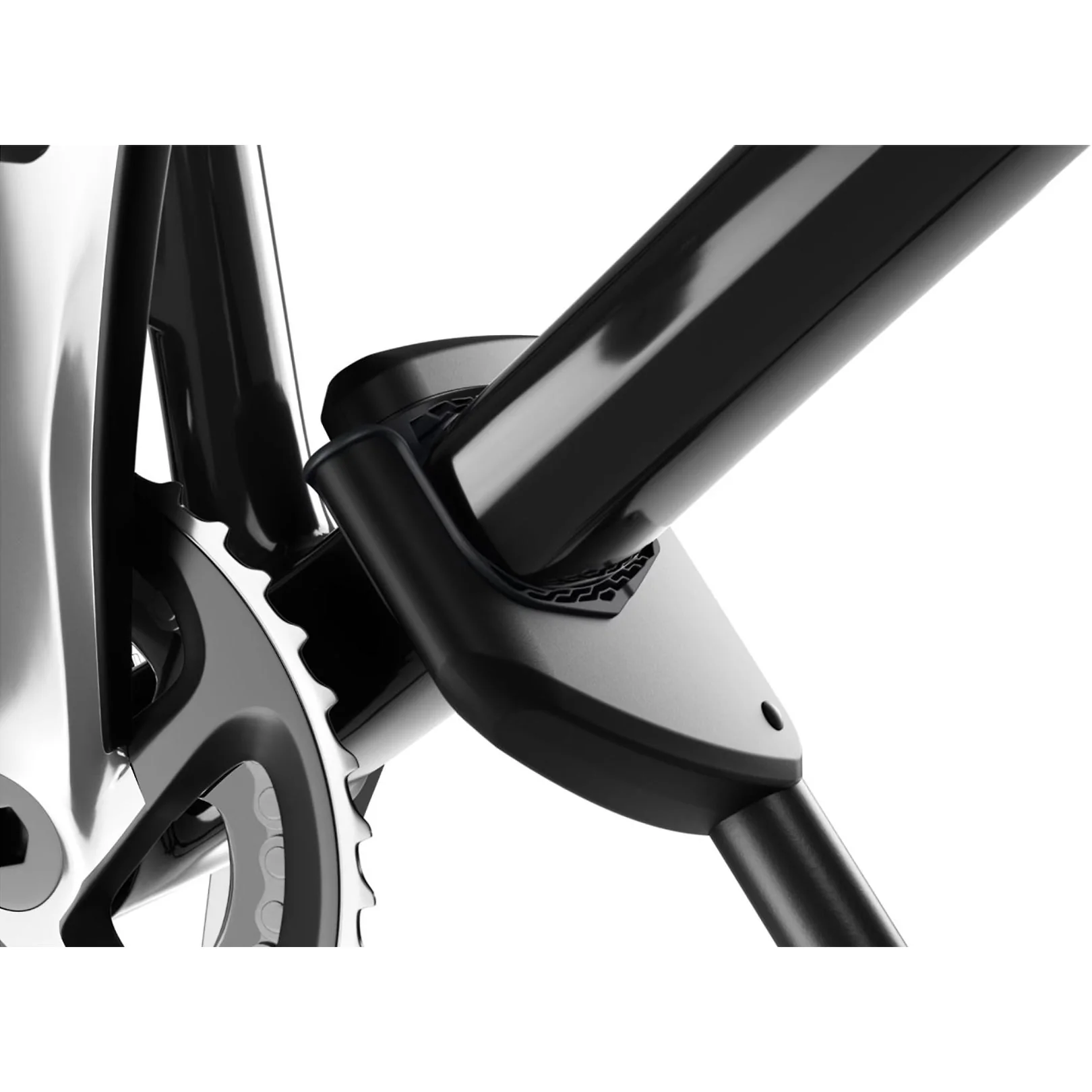

	Pressure is spread via large, soft claw pads that adapt to your bike's frame tubes — minimizing the risk of frame damage

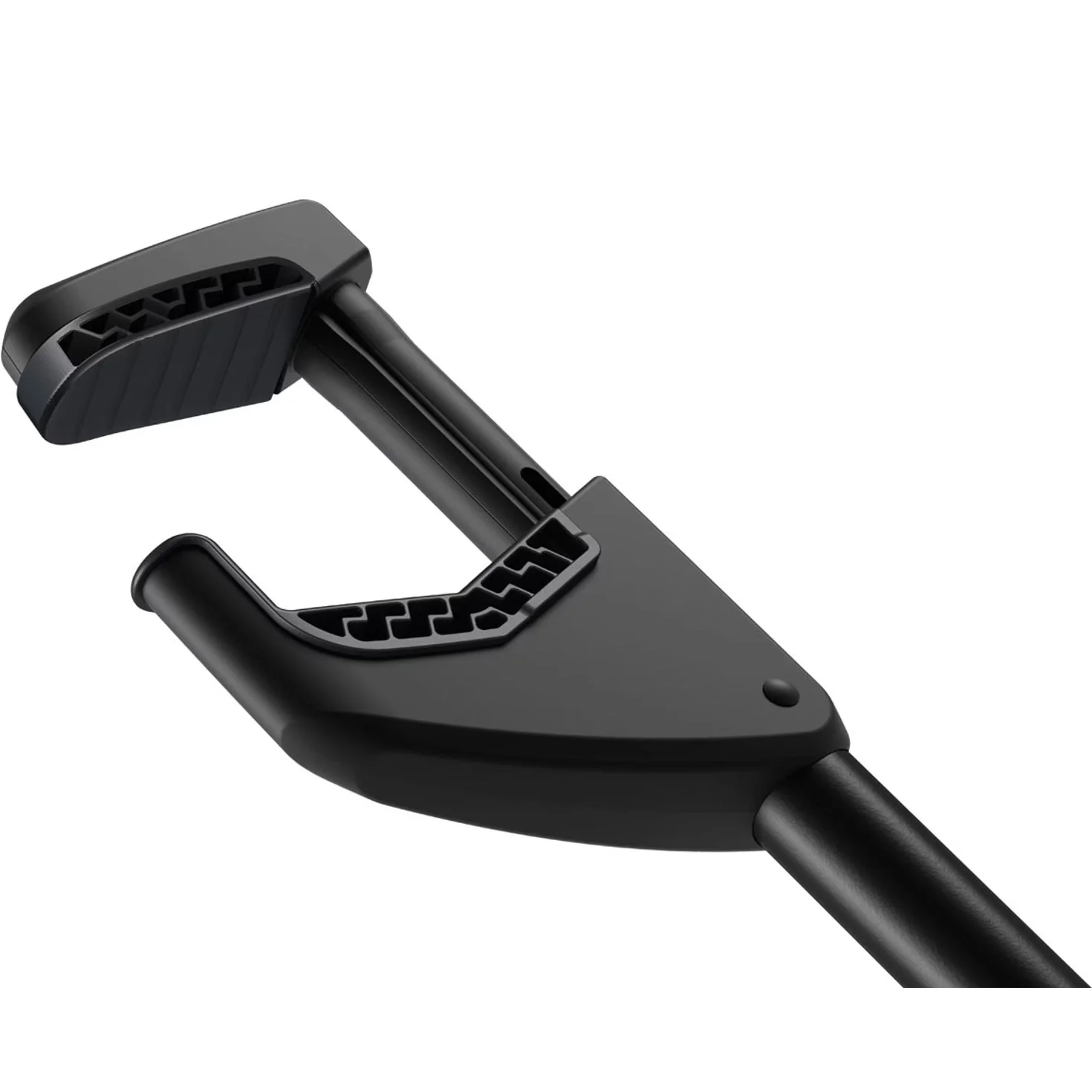

	Safe mounting — your bike is prevented from falling thanks to the claw's extended lower jaw

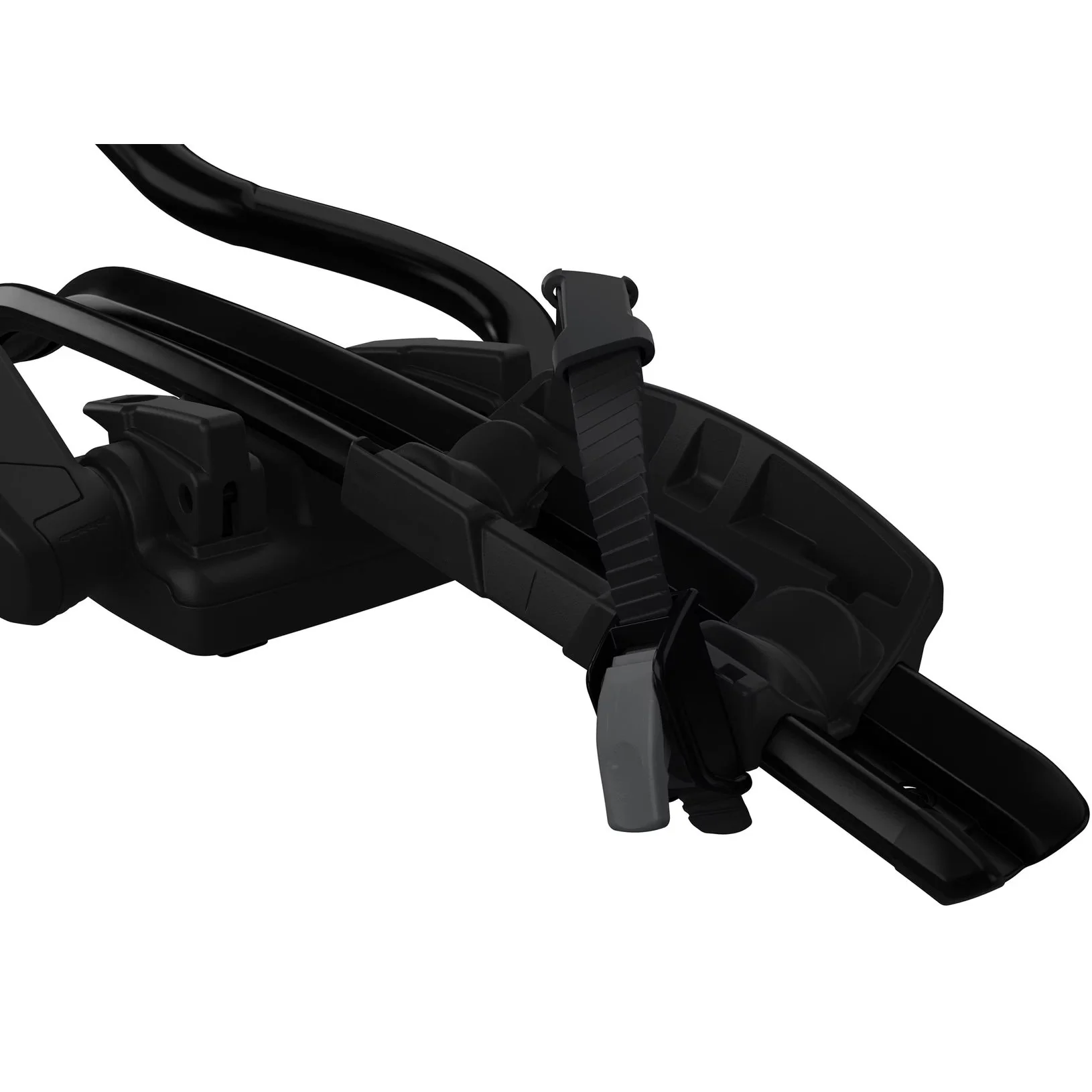

	Stable wheels — firmly fixed in smartly designed wheel holders with diagonal quick-release wheel straps

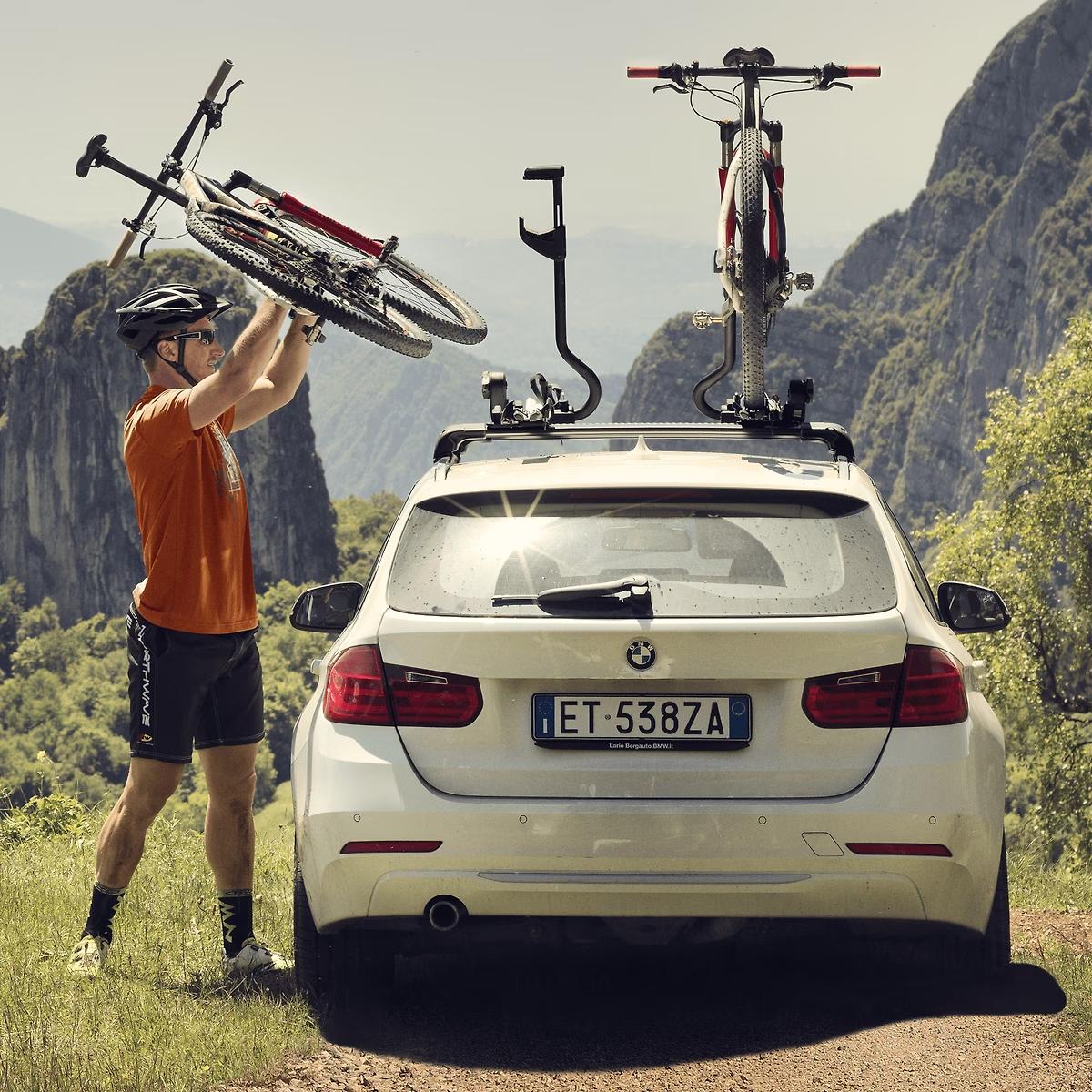

	Easy, tool-free interface for switching carrier from one side of your car to the other
	Mounts to most factory rack systems
	2 One Key lock cylinders (sold separately) lock the bike to carrier and carrier to rack

Technical specifications

Load capacity
20 kg (44 lbs.)

Dimensions (L×W×H)
147.3 × 34.3 × 10.2 cm (28.3 × 11.0 × 36.0")

Mass
2 kg (4.4 lbs.)

Max tire width
3"

Wheel size range
16—29"

Max wheelbase
1235 mm (486")

Fit round frame dimensions
22—80 mm

Carbon frame compatible
Adapter(s) required

Fits roof racks wtih 20×20 mm T-Racks
✔️

Fits roof racks with 24×30 mm T-Racks
❌

Thru-axle compatible
✔️

One Key System compatible
✔️

Country of origin
Poland

Colour
Black

Model number
598004

Part number
C9N1-V3-854
